Product Details
＋

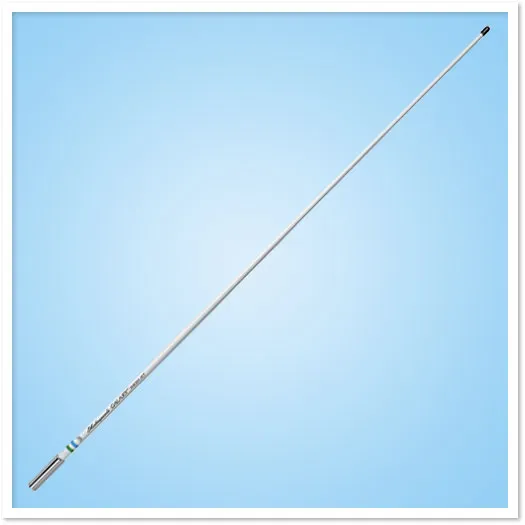

Galaxy Style 5400-XT Little Giant™
4 ft. (1.21 M) VHF Marine Band 3dB
Center-fed -wave coaxial sleeve
An outstanding, 4ft antenna of heavy-duty construction for general purpose communications. It's at home on T-tops, Hard-tops and other positions aloft, where its small size can deliver maximum range.
Solid performance packed into an extra heavy-duty radome
Brass and copper elements to maximize range
Stainless Steel ferrule with standard 1-inch 14- thread
Includes 20ft RG-8/X cable and a PL-259 connector
One section
Best applications include: T-tops and hard-tops
Suggested mount(s): 4187 5187
Galaxy 5400-XT Little Giant™ Specifications
Band: VHF Marine Band
Antenna Gain: 3dB
Max. Input Power: 50 watts
SWR: Less than 1.5:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Stainless steel
Coax Supplied: 20 ft of RG-8/X
Connector Supplied: PL-259, not attached
Color/finish: Galaxy White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground - The antenna will read open on continuity test.
Shakespeare
Limited Warranty: 5 years
